MARLEY SRA1512DSF 1500/7 50 WATTS - 120
Product Overview
The heating equipment shall include an electric automatic fan forced air heater suitable for small area heating, as manufactured by Berko®, a Marley Engineered Products brand, Bennettsville, SC. The heater shall be designed for wall mounting, recess or surface. Heater shall be cETLus listed.
- Attributes
- Documents
- Application
- Item Features
- Standards
BrandBerko®
Amperage Rating12.5 A
Capacity5120 Btu/hr
ColorNorthern White
Country of OriginUS
FinishGalvanized/Powder Coated

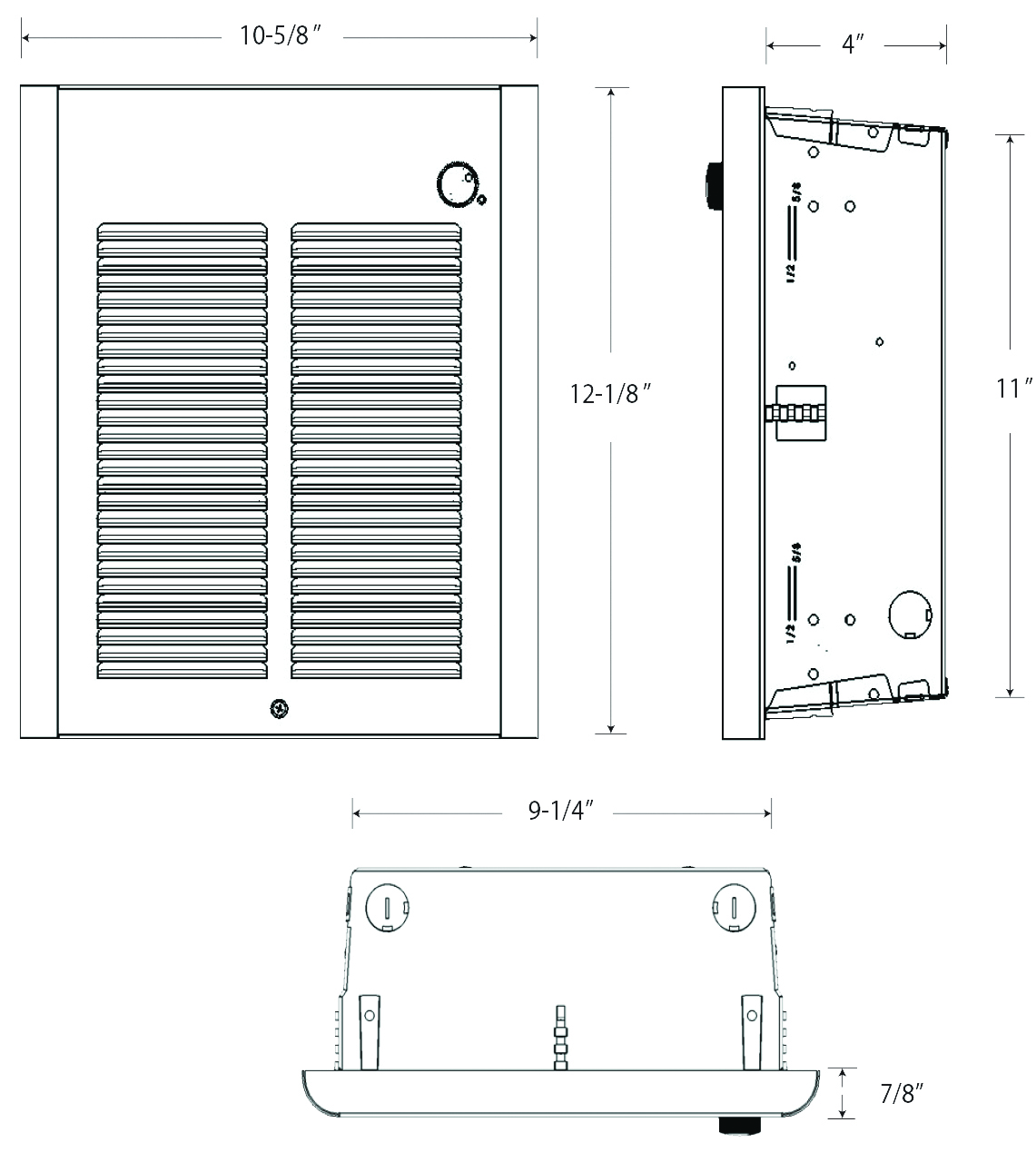

Height12-1/8 in
Manufacturer NameMarley Engineered Products
MaterialSteel
Mounting TypeWall
Power Rating1500 W
SeriesSRA
TypeAutomatic Electric Fan Forced
Voltage Rating120 V
Width10-5/8 in
Attic, Basement, Entryway, Large Room, Office, Remodel and Commercial Applications
- The back box shall be designed as a recessed rough-in box in either masonry or frame installation and is also used when surface mounting frame are used in surface mounting installation
- The back box shall be heavy gauge galvanized steel and shall contain knockout through which power lead enter
- The heater assembly, which fit into the back box, shall consist of a heavy gauge steel fan panel to which all of the operational part of the heater are mounted
- The inner frame assembly shall be completely prewired
- The heating element shall be of the non-glowing design consisting of an 80/20 nickel chromium resistance wire enclosed in a steel sheath to which plate fins are copper brazed
- The element shall cover the entire air discharge area to ensure uniform heating of all discharged air
- A double-pole, single throw on/off switch shall be mounted on the back box for positive disconnect of power supply
- It will be completely concealed behind the front cover
- The fan motor shall be impedance protected, permanently lubricated
- Fan control shall be bi-metallic, snap action-type and shall activate fan after heating element reach operating temperature and continue to operate the fan after the thermostat is satisfied and until all heated air has been discharged
- The thermostat shall be single pole-type on all model
- Thermal cutout shall be self hold (manual reset) type designed to shut-off heat in the event of over heating
- The fan shall be four bladed aluminum
- A backup (end of life) thermal fuse shall be provided for additional safety
- The surface mounting frame shall be of heavy gauge steel designed to mount around the back box for a finished surface installation
- Slot knockout shall be provided for power supply conduit
- The louvered front cover shall be of heavy gauge steel with a powder paint finish
- A plug button will be provided to replace the thermostat knob and render the unit tamper-resistant
- All sheet metal part, except the galvanized steel back box, shall be phosphatized, then completely painted by a powder paint process
ANSI/UL2021|CSA C22.2 File No. 56|cETLus Listed
